Description
Keywords: Infrared Exit Button, Infrared Exit Sensor, Door Release Button, No Touch Exit Button, Touchless Exit button, wave to open release button, Infrared Door release for Electric Locks/Strikes, Magnetic Locks

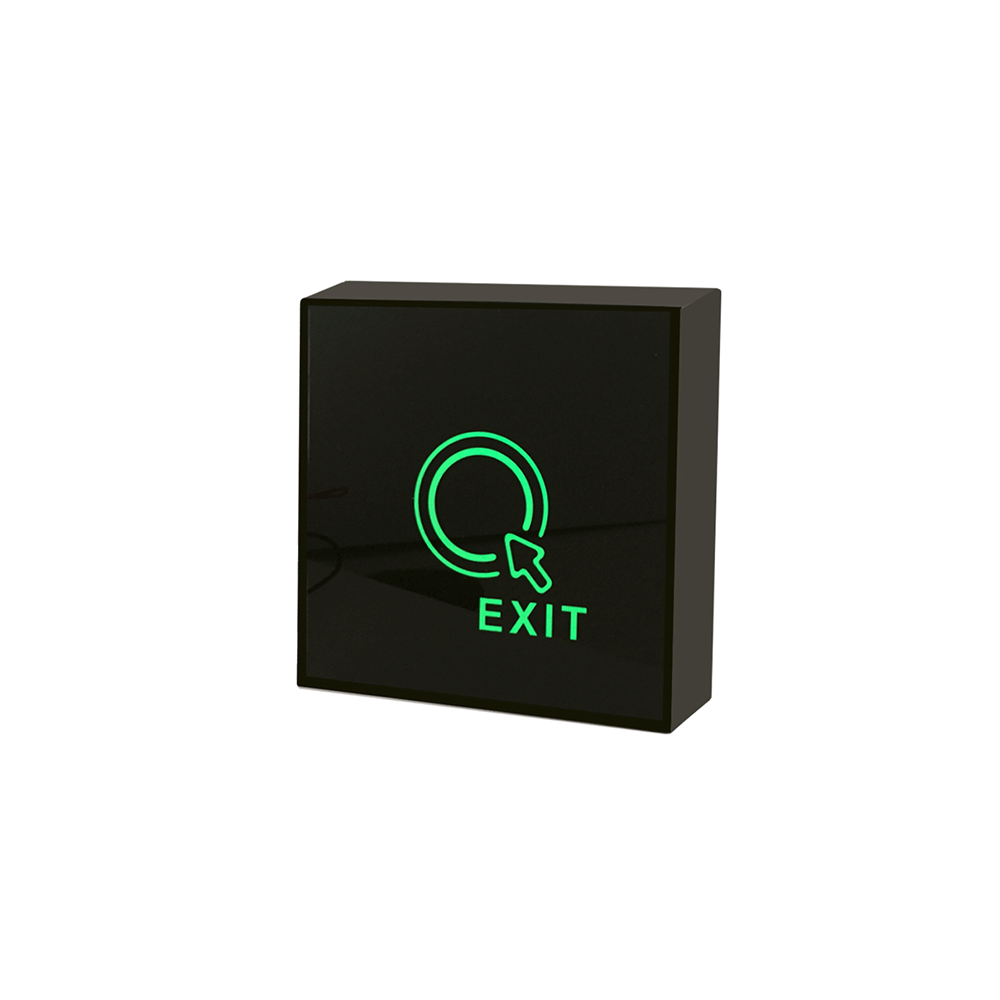

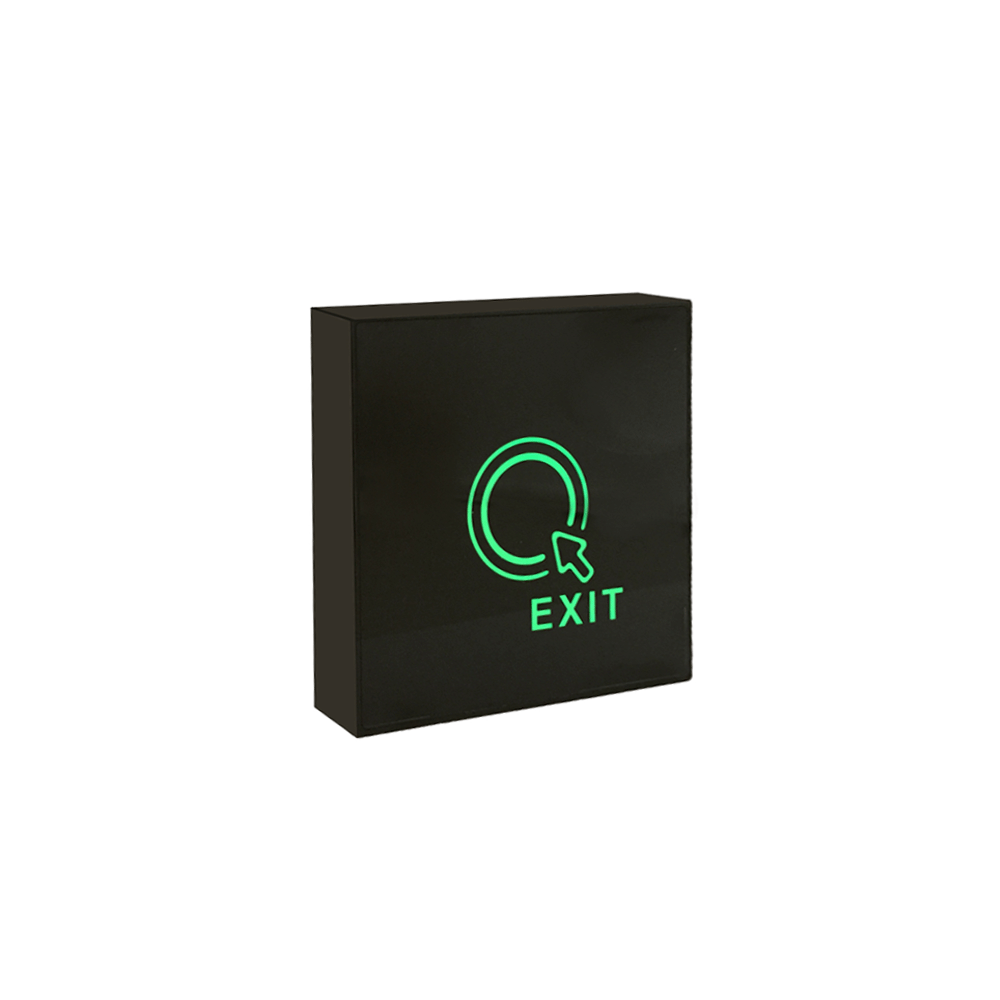

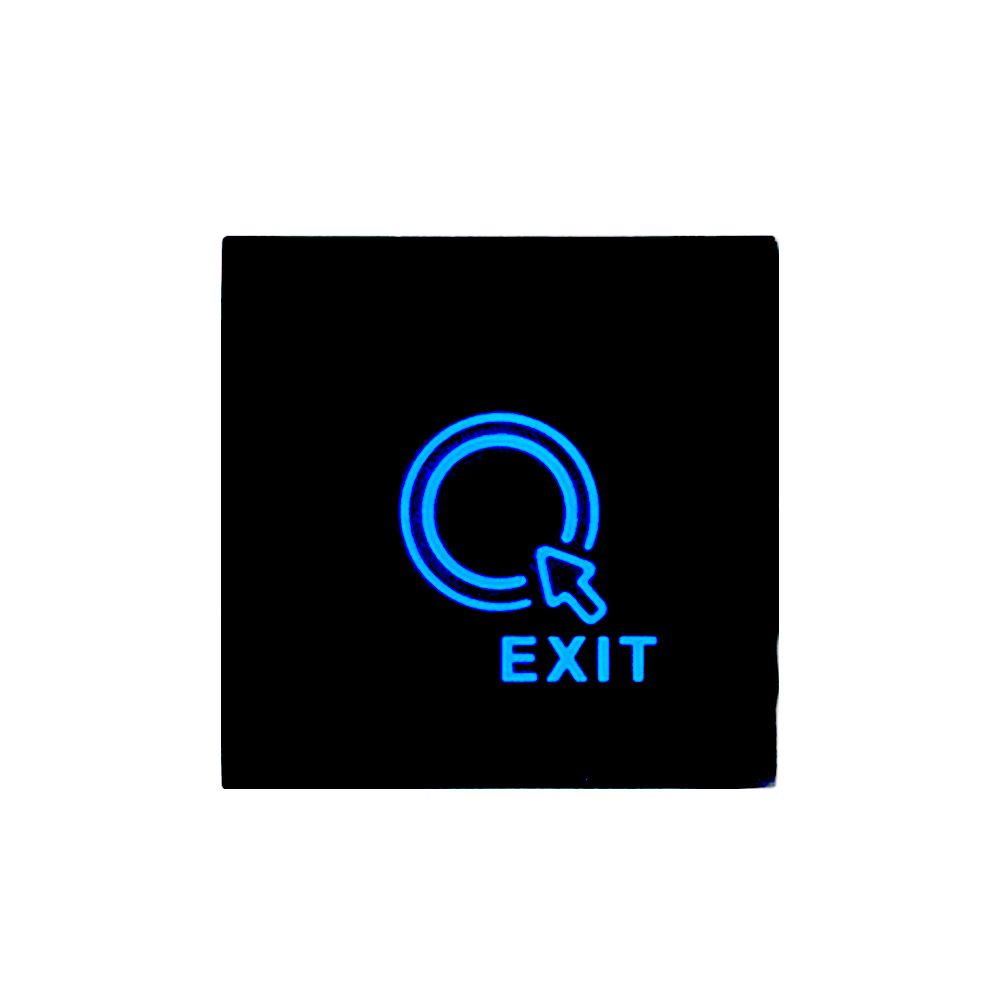

Infrared push to exit button EB300 is a stylish 5cm infrared sensing door release exit button. With bio-color LED indicator (blue standby, green trigged), It enables you easy to wave to open the electric lock or automatic door.

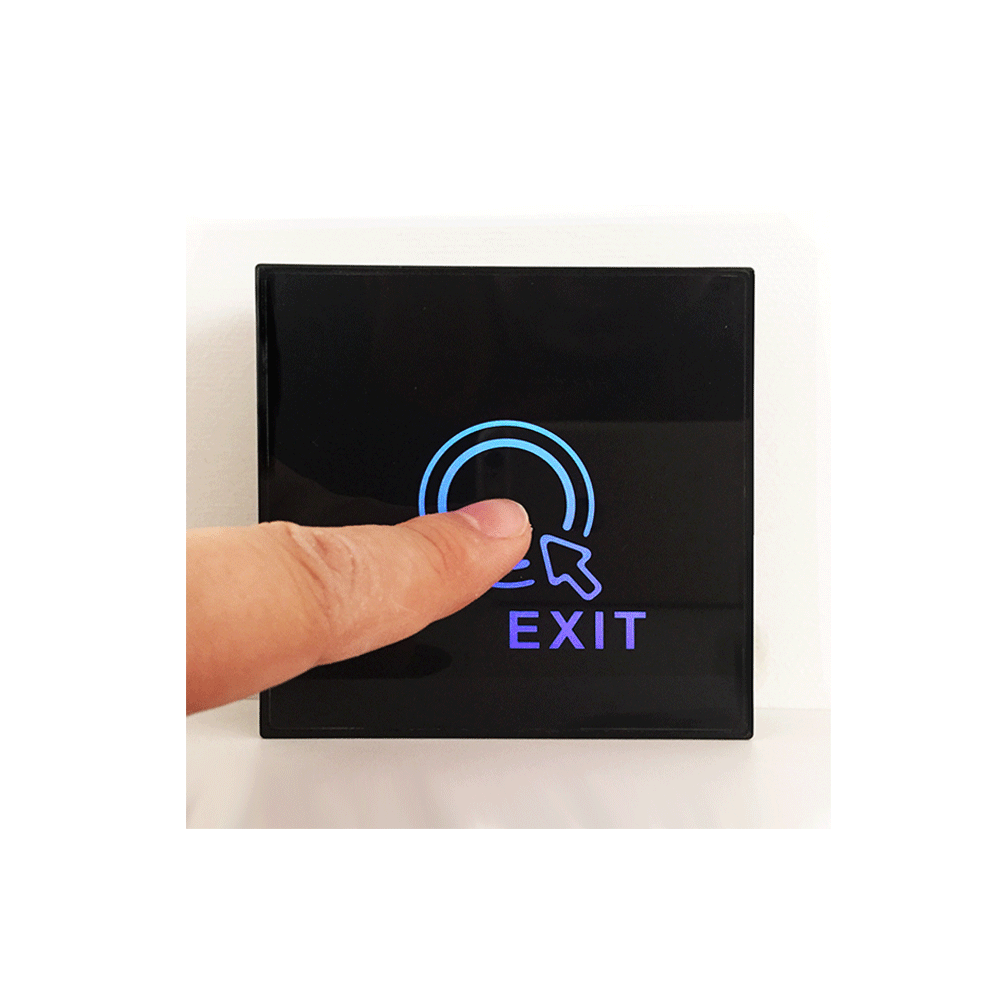

Unlock doors without touching them using the EB300 Infrared Exit Button! Perfect for any place needing cleanliness and ease, like office, schools, or hospitals. It lights up in two colors and works with a quick wave of your hand. Trust in Bestone’s 15+ years of making secure, high-quality tech.
Key Features
- Stylish, luxury and aesthetic design, beautiful and durable
- No touch/touch free/wave to open infrared exit sensor
- Bio-color backing light indicators: blue (door closed), green (door opened)
- Designed to Control Electric Locks/Strikes, Magnetic Locks, or Automatic Door
- Weahther proof design suitable for indoors and commercial use
- 500,000 times tested durability, Special design, no mechanical failure
- The best choice of access control
Specifications
| Technology | Infrared sensor technology |
| LED Color | blue (Standby, door closed), green (Trigged, door opened) |
| Power Supply | 9V -15V DC |
| Current | <40mA |
| Maximum Sensing Range | 5 cm |
| Output | NC/NO/COM |
| Activation Time | 1-5 Second or as Long as Sensor is Triggered |
| Housing Material | ABS |
| Operating Temperature | -10℃ to +65℃ |
| Humidity | 0~95% relative humidity noncondensing |
| Dimension | 86mmx 86mm x 22 mm |
| Weight | 120 g |
Ordering information:
To order, please use exact Model Number
| Model Number | Indicator |
| EB300 | Blue and green |
Note: Your logo is customizable as per request and meet M.O.Q. Other requirements, please contact our sales (sales@bestonetec.com) directly.
Wire Definition
| Wire Color | Definition | Remarks |
| Red | VCC | Power + |
| Black | GND | Power – |
| Yellow | COM | Relay Com output |
| Orange | NC | Relay NC output |
| Brown | NO | Relay NO output |
Typical Application
Offices, library, hospitals, labs, schools, public and commercial places and home use, compatible with electric locks/strikes, magnetic locks, or automatic doors
M.O.Q. Other requirements, please contact our sales (sales@bestonetec.com) directly.
